Geodesic Bending Invariants for Surfaces

Geodesic Bending Invariants for Surfaces

This tour explores the computation of bending invariants of surfaces.

Contents

Installing toolboxes and setting up the path.

You need to download the following files: signal toolbox, general toolbox and graph toolbox.

You need to unzip these toolboxes in your working directory, so that you have toolbox_signal, toolbox_general and toolbox_graph in your directory.

For Scilab user: you must replace the Matlab comment '%' by its Scilab counterpart '//'.

Recommandation: You should create a text file named for instance numericaltour.sce (in Scilab) or numericaltour.m (in Matlab) to write all the Scilab/Matlab command you want to execute. Then, simply run exec('numericaltour.sce'); (in Scilab) or numericaltour; (in Matlab) to run the commands.

Execute this line only if you are using Matlab.

getd = @(p)path(p,path); % scilab users must *not* execute this

Then you can add the toolboxes to the path.

getd('toolbox_signal/');
getd('toolbox_general/');
getd('toolbox_graph/');

Bending Invariants

Bending invariants replace the position of the vertices in a shape \(\Ss\) (2-D or 3-D) by new positions that are insensitive to isometric deformation of the shape. This defines a bending invariant signature that can be used for surface matching.

Bending invariant were introduced in [EladKim03]. A related method was developped for brain flattening in [SchwShWolf89]. This method is related to the Isomap algorithm for manifold learning [TenSolvLang03].

We assume that \(Ss\) has some Riemannian metric, for instance coming from the embedding of a surface in 3-D Euclidian space, or by restriction of the Euclian 2-D space to a 2-D sub-domain (planar shape). One thus can compute the geodesic distance \(d(x,x')\) between points \(x,x' \in \Ss\).

The bending invariant \(\tilde \Ss\) of \(\Ss\) is defined as the set of points \(Y = (y_i)_j \subset \RR^d\) that are optimized so that the Euclidean distance between points in \(Y\) matches as closely the geodesic distance between points in \(X\), i.e. \[ \forall i, j, \quad \norm{y_i-y_j} \approx d(x_i,x_j) \]

Multi-dimensional scaling (MDS) is a class of method that aims at computing such a set of points \(Y \in \RR^{d \times N}\) in \(\RR^d\) such that \[ \forall i, j, \quad \norm{y_i-y_j} \approx \de_{i,j} \] where \(\de \in \RR^{N \times N}\) is a input data matrix. For a detailed overview of MDS, we refer to the book [BorgGroe97]

In this tour, we apply two specific MDS algorithms (strain and stress minimization) with input \(\de_{i,j} = d(x_i,x_j)\).

3-D Surfaces and Geodesic Distances

We consider here a syrface \(\Ss \subset \RR^3\).

Load a mesh of \(N\) vertices that discretizes this surfaces.

name = 'camel';
options.name = name;
[V,F] = read_mesh(name);
N = size(V,2);

Display it.

clf;
plot_mesh(V,F, options);

The geodesic distance map \(U(x) = d(x,x_i)\) to a starting point \(x_i\) can be computed in \(O(N \log(N))\) operations on a mesh of \(N\) vertices using the Fast Marching algorithm.

i = 1;
U = perform_fast_marching_mesh(V, F, i);

Extract a bunch of geodesic shortest paths from \(x_i\) to randomly selected vertices \( (x_j)_{j \in J} \).

options.method = 'continuous';
J = randperm(N); J = J(1:50);
paths = compute_geodesic_mesh(U, V, F, J, options);

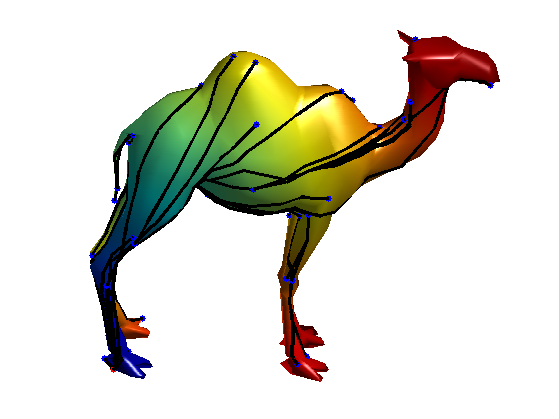

Display the distance \(U\) on the 3-D mesh together with the geodesic paths.

clf;
plot_fast_marching_mesh(V, F, U, paths, options);

The geodesic distance matrix \(\de \in \RR^{N \times N}\) is defined as \[ \forall i,j=1,\ldots,N, \quad \de_{i,j} = d(x_i,x_j). \]

Exercice 1: (check the solution) Compute the geodesic distance matrix \(\de\). It is going to take some of time.

exo1;

Bending Invariant with Strain Minimization

The goal is to compute a set of points \(Y = (y_i)_{i=1}^N\) in \(\RR^d\), (here we use \(d=2\)) stored in a matrix \(Y \in \RR^{d \times N}\) such that \[ \forall i, j, \quad D^2(Y)_{i,j} \approx \de_{i,j}^2 \qwhereq D^2(Y)_{i,j} = \norm{y_i-y_j}^2. \]

Target dimensionality \(d\).

d = 3;

This can be achieved by minimzing a \(L^2\) loss \[ \umin{Y} \norm{ D^2(Y)-\de^2 }^2 = \sum_{i<j} \abs{ \norm{y_i-y_j}^2 - \de_{i,j}^2 }^2. \]

Strain minimization consider instead the following weighted \(L^2\) loss (so-called strain) \[ \umin{Y \in \RR^{d \times N} } \text{Strain}(Y) = \norm{ J ( D^2(Y)-\de^2 ) J }^2 \] where \(J\) is the so-called centering matrix \[ J_{i,j} = \choice{ 1-1/N \qifq i=j, \\ -1/N \qifq i \neq j. }\]

J = eye(N) - ones(N)/N;

Using the properties of squared-distance matrices \(D^2(Y)\), one can show that \[ \norm{ J ( D^2(Y)-\de^2 ) J }^2 = \norm{ Y Y^* - K }^2 \qwhereq K = - \frac{1}{2} J \de^2 J. \]

K = -1/2 * J*(delta.^2)*J;

The solution to this (non-convex) optimization problem can be computed exactly as the rows of \(Y\) being the two leading eigenvectors of \(K\) propery rescaled.

opt.disp = 0;
[Y, v] = eigs(K, d, 'LR', opt);
Y = Y .* repmat(sqrt(diag(v))', [N 1]);
Y = Y';

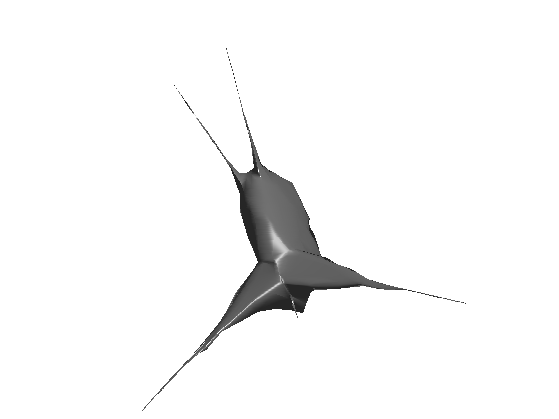

Display the bending invariant surface.

clf;
plot_mesh(Y,F, options);

Bending Invariant with Stress Minimization

The stress functional does not have geometrical meaning. An alternative MDS method directly minimizes a geometric loss, the so-called Stress \[ \umin{Y \in \RR^{d \times N} } \text{Stress}(Y) = \norm{ D(Y)-\de }^2 = \sum_{i<j} \abs{ \norm{y_i-y_j} - \de_{i,j} }^2. \] It is possible to find a local minimizer of this energy by various descent algorithms, as initially proposed by [Kruskal64]

Stress = @(d)sqrt( sum( abs(delta(:)-d(:)).^2 ) / N^2 );

Operator to compute the distance matrix \(D(Y)\).

D = @(Y)sqrt( repmat(sum(Y.^2),N,1) + repmat(sum(Y.^2),N,1)' - 2*Y'*Y);

The SMACOF (Scaling by majorizing a convex function) algorithm solves at each iterations a quadratic energy, that is guaranteed to diminish the value of the Strain. It was introduced by [Leeuw77]

It computes iterates \(X^{(\ell)}\) as \[ X^{(\ell+1)} = \frac{1}{N} X^{(\ell)} B(D(X^{(\ell)}))^*, \] where \[ B(D) = \choice{ -\frac{\de_{i,j}}{D_{i,j}} \qifq i \neq j, \\ -\sum_{k} B(D)_{i,k} \qifq i = j. } \]

Initialize the positions for the algorithm.

Y = V;

Operator \(B\).

remove_diag = @(b)b - diag(sum(b));
B = @(D1)remove_diag( -delta./max(D1,1e-10) );

Update the positions.

Y = Y * B(D(Y))' / N;

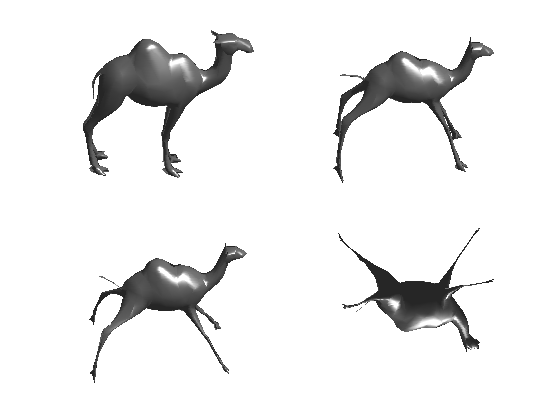

Exercice 2: (check the solution) Perform the SMACOF iterative algorithm. Save in a variable s(l) the values of Stress\(( X^{(\ell)} )\).

exo2;

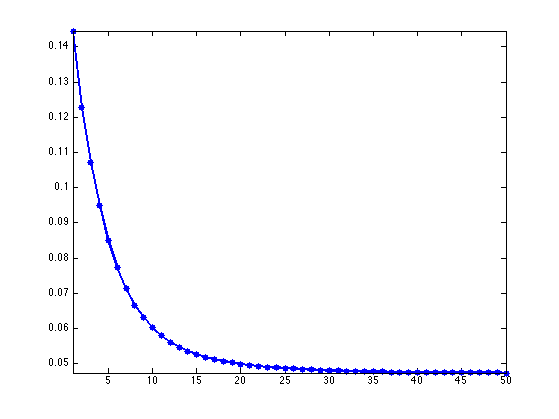

Plot stress evolution during minimization.

clf;
plot(s, '.-', 'LineWidth', 2, 'MarkerSize', 20);
axis('tight');

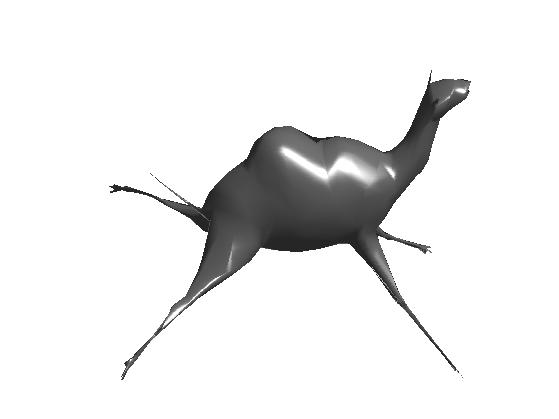

Plot the optimized invariant shape.

clf;
plot_mesh(Y,F, options);

Surface Retrieval with Bending Invariant.

One can compute a bending invariant signature for each mesh in a library of 3D surface.

Isometry-invariant retrival is then perform by matching the invariant signature.

Exercice 3: (check the solution) Implement a surface retrival algorithm based on these bending invariants.

exo3;
